High efficiency steam generators

Clayton’s large E-Series commercial steam boiler systems and dry steam generation systems range in size from 150 to 2,000 boiler horsepower (1,472 to 19,620kW) and steam flows from 5,175 to 69,000 lbs. per hr (2,347 to 31,300 kg/hr). Pressure design ratings are available up to 3000 psig (207 barg).

Clayton Industries offers all their fired steam generators with state-of-the-art, fully modulating automatic PLC based controls and servo actuated burner management systems. Our complete E Series line is available as medium pressure steam boilers and high pressure steam boilers.

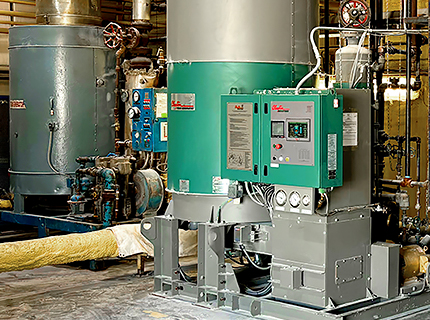

Clayton E-Series Boilers are compact, highly-efficient industrial steam generators. They come with several benefits above traditional water tube and fire tube boilers. Their unique controlled-flow/counter-flow heat exchanger design allows these quick-start boilers to start up and respond to system load changes very rapidly while maintaining system pressures. Controlling internal water flows allows management of TDS build-up and its disposal in a concentrated flow. This greatly reduces wasted heat, chemicals and water. The potential of steam explosions is effectively eliminated from the boiler room because this is done without a large pressure vessel. This contributes to the safety of Clayton Industrial Steam Generators.
