Data center tier classifications

Both ANSI (ANSI TIA-942 Standard) and the Uptime Institute have established tier classifications as guidelines for designing topologies that deliver data center availability and reliability. These resources further explain the differences between types of mission critical facilities. The following list explains the tier classifications:

Tier 1: Basic

• Susceptible to disruptions from planned and unplanned activity
• Capacity design is need (N) with no redundant components
• Infrastructure shutdown required for preventive maintenance and repair work.

Tier 2: Redundant components

• Less susceptible to disruptions from planned and unplanned activity
• Capacity design is N with some redundant components
• Single threaded distribution path
• Infrastructure shutdown required for preventive maintenance and repair work.

Tier 3: Concurrent maintenance

• Allows for planned infrastructure activity (maintenance, repair, expansion) without disruption
• Capacity design is N+1
• Dual threaded distribution path
• Errors in operation or failures can still cause a disruption.

Tier 4: Fault tolerant

• High reliability, availability, and serviceability
• Allows for planned infrastructure activity (maintenance, repair, expansion) without disruption

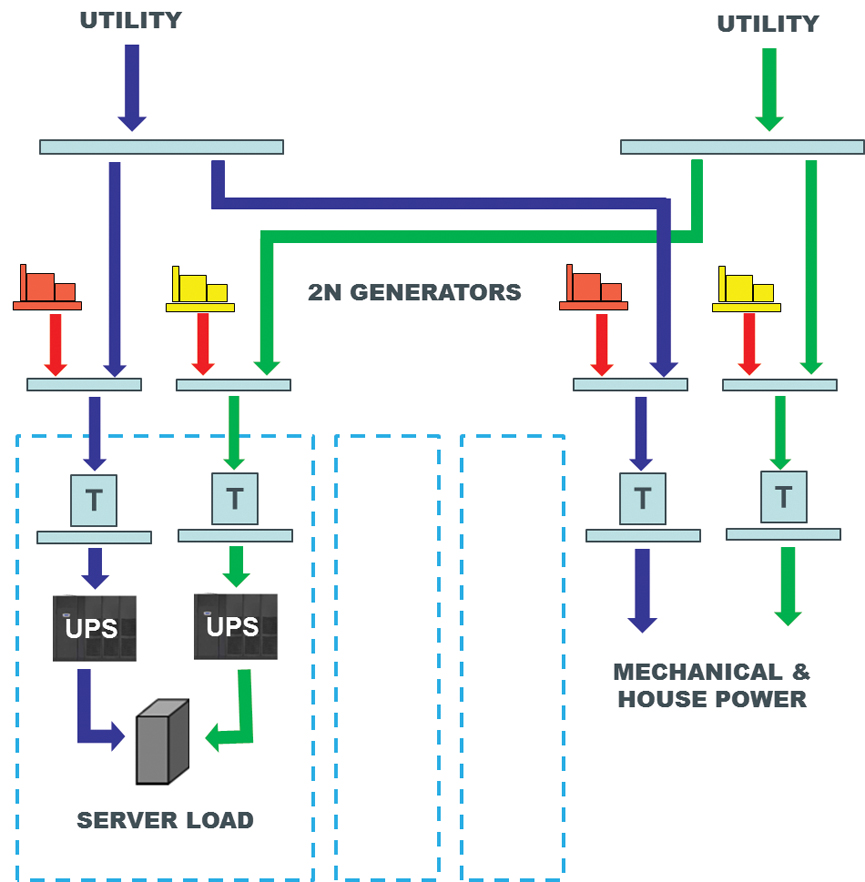

• Capacity design is system + system (2N)
• Dual threaded distribution path
• System can sustain one unplanned failure with no impact to critical load.
