XT Compact Combination Starter
RELATED PRODUCTS
PRODUCT INFORMATION
MANUFACTURED BY Eaton Corporation
PUBLISH DATE
April 26, 2023
RELEASE DATE
April 26, 2023
CATEGORY
Electrical and Power

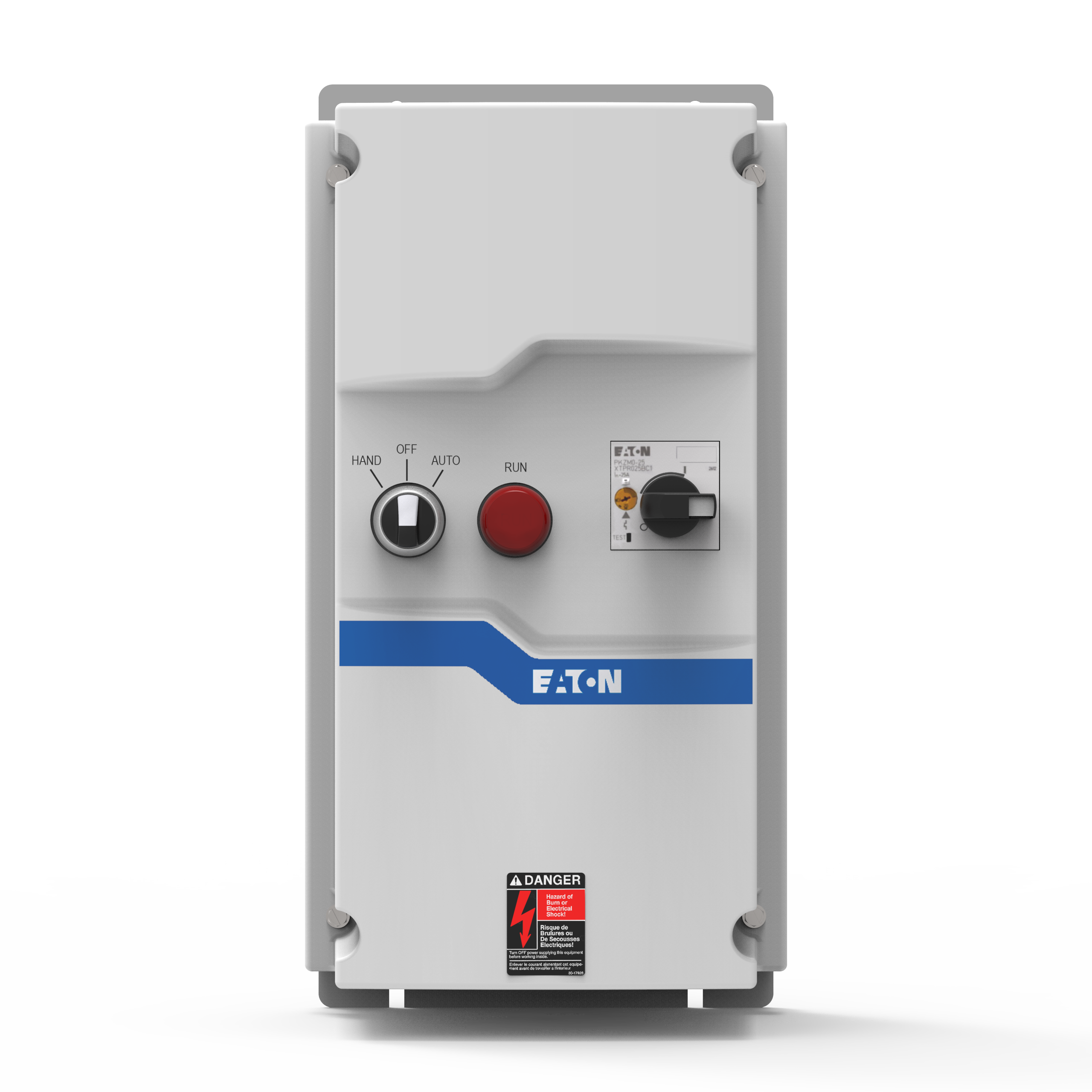

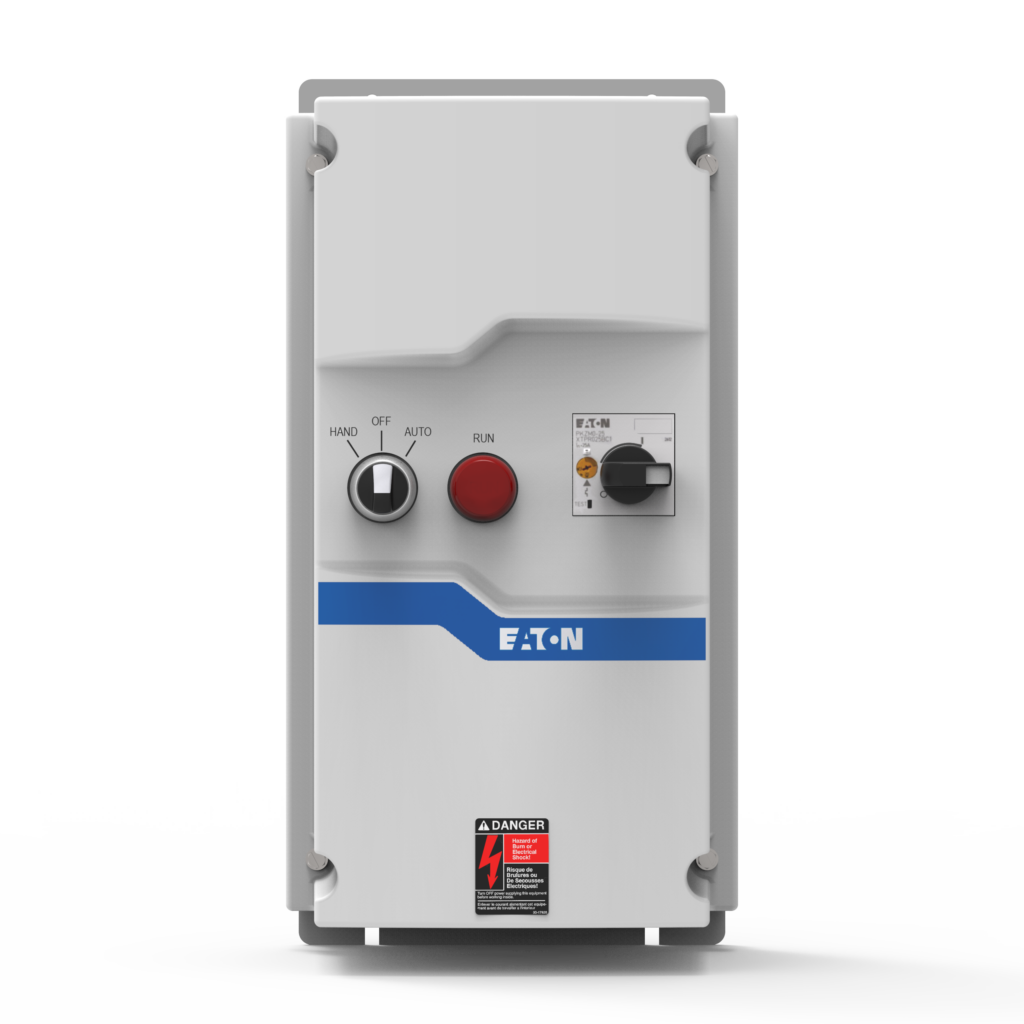

Cost-effective design consisting of UL Type F combination motor controller, control power transformer (CPT), terminal block, Hand/Off/Auto selector switch, rotary style disconnect and red RUN pilot light. Motor controller consists of an XT contactor, manual motor protector (MMP) and adjustable Class 10 thermal overload. 65 kAIC SCCR up to 480 V & BACnet MS/TP as a factory- or field-installable option. Replaceable components & cover retention with captive screws to streamline maintenance. It has NEMA Type 1, 12 & 3R enclosures available with a cohesive layout & minimal footprint. They are designed for fans, chillers, compressors, small pumps & motors, industrial equipment, MRO and more.
