Split data center cooling system

Munters January 3, 2022

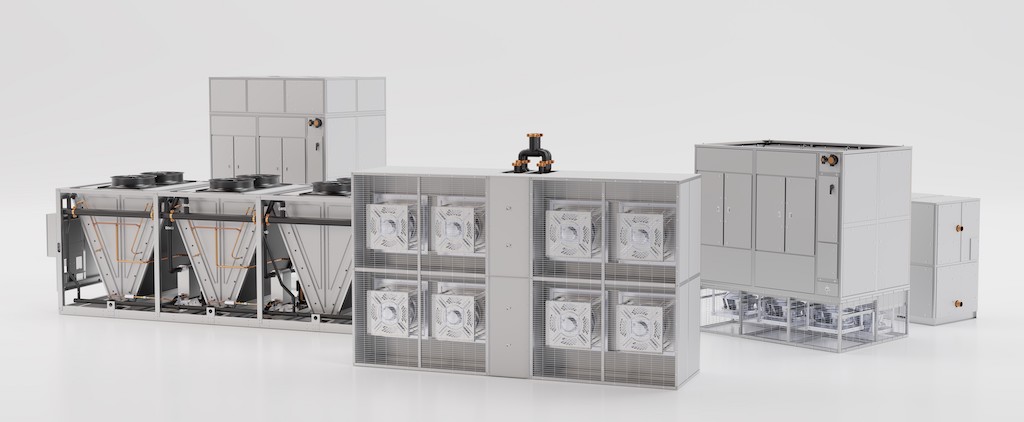

SyCool SYS500 is a highly efficient thermosyphon-based split data center cooling system. Server heat evaporates liquid refrigerant within the thermosyphon, which passively travels to the condenser (by differential refrigerant pressure) where it is condensed back to a liquid. High heat transfer effectiveness enables superior economization. The 500-kW condenser can be coupled with fan array or downflow CRAHs for air cooling applications, with up to 500 equivalent feet of separation between the evaporator and condenser. This same condenser can also be coupled with a fluid cooling evaporator, offering the flexibility to easily convert air cooled infrastructure to liquid cooling options.
