22PDP Sensors

Belimo’s new 22DPD sensors for wet-to-wet differential pressure measurement utilizing remote sensors in HVAC systems

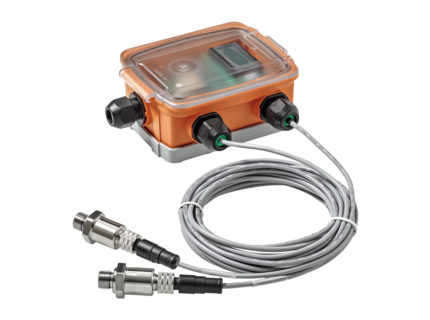

On December 2, Belimo released new 22PDP-585 and 22PDP-588 active sensors (4…20 mA / 0…5 V / 0…10 V) for wet-to-wet differential pressure measurement utilizing remote sensors in HVAC systems. The sensors are suitable for water and water-glycol mixtures.

The 22PDP reduces installation time and material costs with external sensors by connecting the high and low side sensors at the measurement point. The hinged cover and spring-loaded terminal block save wiring time and ensure reliable contact. The enclosure is NEMA 4X / IP65 rated and offers an LCD.

Simplifies installation, commissioning, and operation

–      Housing with separate mounting plate for straightforward, easy wall mounting

–      Remote pressure transmitters eliminate the need for impulse tubes

–      Removable terminal block for efficient wiring

–      Output signals, pressure ranges, and other configurable options selectable directly from the unit

–      Settings and measurement data are visible

–      Manual zero-point adjustment

Versatile application

–      Flexible installation with remote pressure transmitters

–      Various on-site configuration options

–      Integrated LCD for parametrization and pressure indication

–      Four selectable pressure ranges within the maximum pressure range

–      Available output signals 4…20 mA, 0…5/10 V

–      UL Certification
