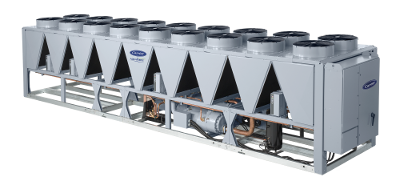

Variable-speed chiller
The AquaForce 30XV air-cooled variable-speed chiller was developed to ensure performance and efficiency that meet the cooling needs of tomorrow's buildings, in a design that's ready for action today.

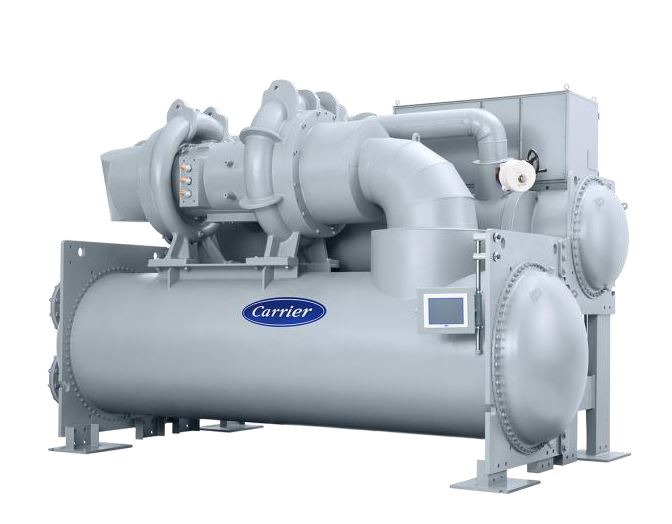

Centrifugal chiller with environmentally sustainable refrigerant
Carrier's AquEdge 19DV centrifugal chiller with Greenspeed intelligence and a low Global Warming Potential (GWP) refrigerant.
Ductless outdoor units
The Performance Series is suite of ductless products that provide heating capacity at 5°F and heating operation down to -22°F.
Chiller system with intelligence option
AquaSnap 30RAP chiller features the Greenspeed intelligence option, which includes variable speed technology that increases energy-efficiency and delivers quiet operation.

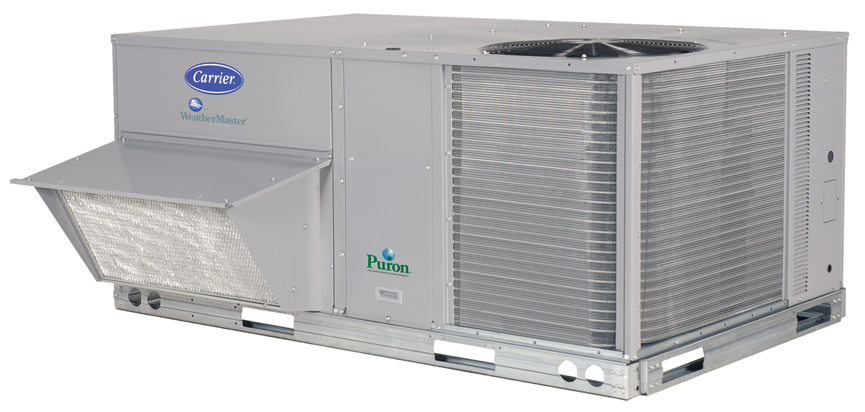

Dual-stage relief economizer
Dual Stage Relief Economizer uses a typical economizer with barometric relief and integrates an additional relief plenum from the building space up through the rooftop unit that bypasses traditional barometric relief dampers.
Products
Air-cooled scroll chiller
The AquaSnap 30RC chiller is an effective all-in-one package that is easy to install and easy to own. The chiller costs less to purchase and install and operates quietly and efficiently. Value-added features include rotary scroll compression, HFC refrigerant R-32 or R-410A, a quiet AeroAcoustic fan system, easy to use PIC6 controls, microchannel condenser coil technology or optional AlCu coils, optional integrated hydronic pump package (with or without VFD), optional desuperheater, and optional high-efficiency variable condenser fans (Greenspeed intelligence).
High-efficiency single-packaged rooftop units
The WeatherExpert packaged high outdoor air system is a special configuration of Carrier's WeatherExpert packaged rooftop unit that can operate with up to 100% outdoor air for ventilation or make-up air in light commercial applications. The WeatherExpert 48LCH and 50LCH include new options including modulating low load protection valve to prevent refrigerant circuit issues at low loads, modulating hot gas reheat for dehumidification with supply air temperature control, and the exclusive EcoBlue vane axial supply fan for a wide airflow range. All units include Carrier SmartVu controls for flexibility, ease of setup and commissioning and simplified troubleshooting.
i-Vu Weather Forecasting Add-On
Carrier i-Vu weather forecasting add-on for the i-Vu building automation system enables intelligent control strategies based on real time outside air quality data, helping buildings adapt to changeable climate conditions. The i-Vu building automation system communicates with leading weather forecasting agencies, AccuWeather, the U.S. National Weather Service and Environment Canada, with the weather add-on. Ten-day hourly weather forecast data can be used to optimize energy efficiency indoors and the use of water in irrigation systems outdoors.
i-Vu Express building automation device
Carrier has released its latest i-Vu Express building automation device. The new connected device comes pre-installed with i-Vu Express v8.5 software and can receive automatic software updates. The i-Vu Express building automation system provides a 360 degree view of a building’s entire operation allowing operators to maintain comfort for occupants, optimize energy usage and resolve problems faster.
AquaEdge 19MV Water-Cooled Centrifugal Chiller with Magnetic Bearings
Carrier's AquaEdge 19MV was unveiled in January 2022 with capacity from 300 to 700 tons (1,055kW – 2,461kW), combining best-in-segment efficiency for design and the ability to operate at severe conditions due to unexpected building operation or extreme weather. It leverages Carrier’s proven EquiDrive two-stage back-to-back compressor technology, with magnetic bearings, providing expanded operating range while improving chiller energy efficiency and building resiliency. The AquaEdge 19MV can take full advantage of cold condenser water, chilled water reset and other energy-saving practices to further improve building performance.
WeatherMaker 50FCQ Single Package Heat Pump Rooftop Series with EcoBlue Technology
The complete lineup of Carrier’s WeatherMaker 50FCQ packaged heat pump products begins at 3 tons and expands all the way up to - an industry first – 25 ton unitary rooftop unit (RTU) heat pump. The entire lineup offers our patented vane axial EcoBlue indoor fan system, which provides excellent external static pressure capability and an unprecedented ease of set up. EcoBlue offers reliable ECM powered vane axial fans that are up to 40% more efficient while using 75% less moving parts than a traditional belt driven fan system.
HAP
HAP is designed for consulting engineers, design/build contractors, HVAC contractors, facility engineers and other professionals involved in the design and analysis of commercial building HVAC systems. The program is a powerful tool for designing systems and sizing system components as well as modeling annual energy performance and energy costs.
