Your questions answered: Division 25 Specification

Questions not answered during the Oct. 22, 2019, webcast on “Division 25 Specification: Live Software Demonstration for Integrated Systems” are answered here
By Brad Bonfiglio, Schneider Electric November 4, 2019

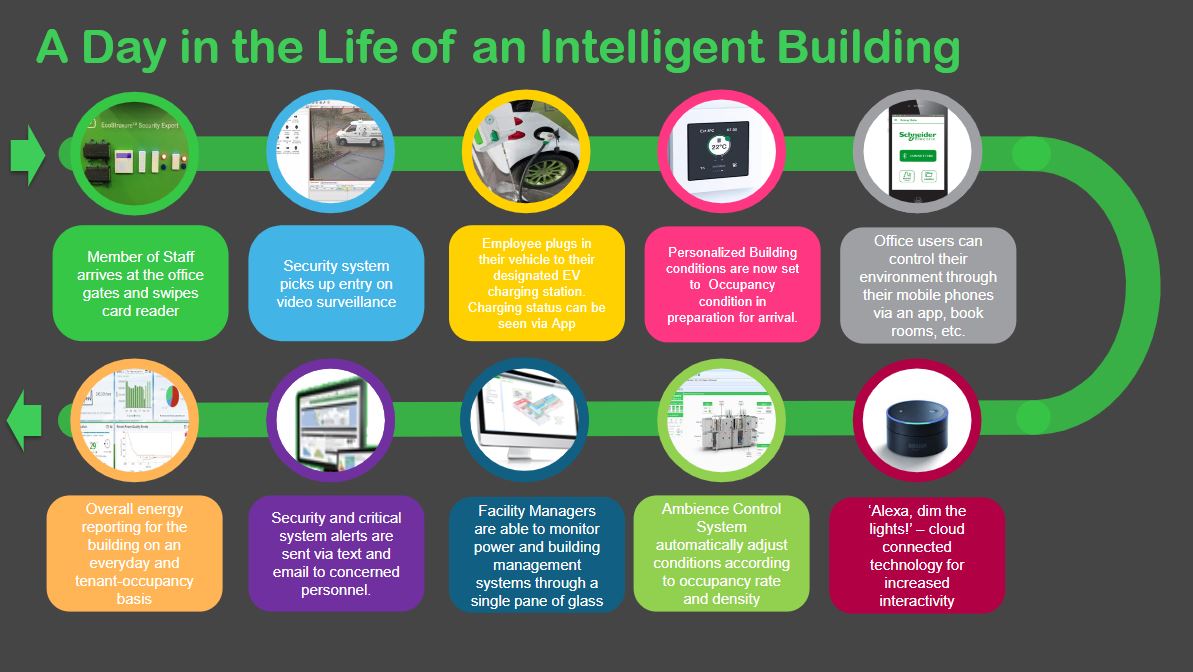

Data’s exponential growth is driving demand for future-ready, sustainable buildings that meet current and future occupant/tenant needs. As a result, there is an increased interest in intelligent and connected buildings, and a unique opportunity to apply AIA’s little-known MasterFormat Division 25 Specification to adapt and adjust to digitization and produce high-performance buildings in the process.

Not all questions were answered during the Oct. 22, 2019, webcast Division 25 Specification: Live Software Demonstration for Integrated Systems. Read on for the responses.

Presenter: Brad Bonfiglio, Consultant Solution Architect Director, Schneider Electric

Question: What is the communications protocol for the described systems in your demonstration? Are all the systems stand-alone independent manufactured systems communicating with something like BACnet or Modbus, or are all systems Schneider Electric manufactured systems?

Brad Bonfiglio: We are using a combined BACnet IP, Modbus and EcoStruxure web services, which is native within Schneider Electric products.

Question: How does the system integration coordination fit into the typical designbidbuild construction processIt seems to be a significant process.

Brad Bonfiglio: The AIA integrated project delivery process is a great process to follow for system integration coordination

Question: Does the integration require all systems to be from Schneider Electric family of companies?

Brad Bonfiglio: No, we do not require a Schneider Electric family of equipment. We have built-in open protocols to communicate with other manufactures such as BACnet, Modbus, LONworksweb services and SNMP.

Question: When using a Division 25 specification, which contractor would do the commissioning/verifications to make sure all this works as expected?

Brad Bonfiglio: We have typically seen an independent commissioning agent perform the verification.

Question: Is this software compatible with my building information modeling?

Brad Bonfiglio: We do have BIM models already but need more information to answer software compatible.”

Question: Are there any tools to help stakeholders to determine the level of interoperability? Just what they want to control? Cost impacts?

Brad Bonfiglio: This question really falls into a cost versus benefit analysis. By defining the project stakeholder’s overall goals and key metrics will help determine the level of interoperability and cost impact.

Question: Does infrastructure cabling play into this division to connect this all together?

Brad Bonfiglio: Yes, it does (internet protocol).

Question: How secure is this application? Can you install this application/software locally and do we need a Schneider Electric server for remote monitoring?”

Brad Bonfiglio: Locally our software supports the IEC 62443 (ISA99) certifications and TLS 1.2 encryption.

Question: Does Division 25 cover commissioning?

Brad Bonfiglio: We have typically seen an independent commissioning agent perform the verification.

Question: Does your software talk to most control vendor products??

Brad Bonfiglio: Our software uses BACnet IP to communicate to other control vendor protects.


Brad Bonfiglio, Schneider Electric
