Pump controls for active chilled beams

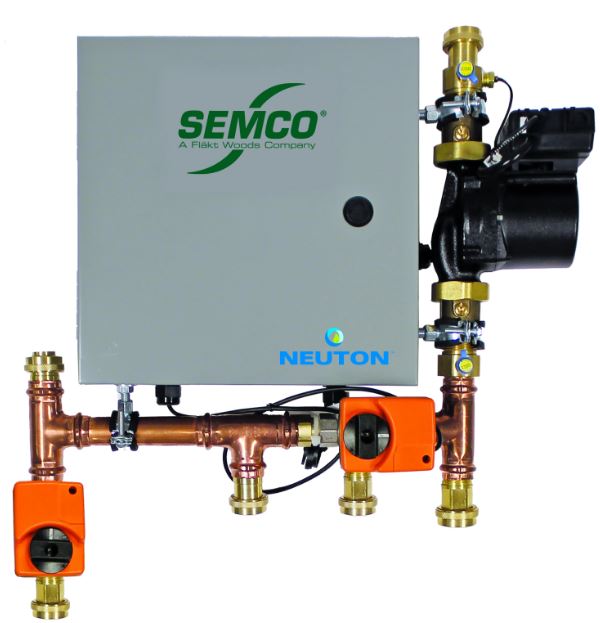

Neuton pump module consists of modified onboard software, combination temperature/humidity monitoring sensors and thermostatically controlled hydronic valves for up to five zones. While the original Neuton was designed to control up to 10 chilled beams in a single zone, the Neuton–multiple zone can control several chilled beam spaces with similar heating/cooling/humidity loads, such as single user offices, library study rooms, hospital rooms, and other small spaces. This cuts project chilled beam control equipment and installation costs by 60%, while providing personalized air comfort. Individual zone temperature is achieved through set points at the BMS or at the Neuton pump module when a BMS is absent. One Neuton and its 12-gpm pump can accommodate five offices (zones) averaging 120 sq ft each (10 x 12-ft room, load dependent), and both chilled beam retrofit and new construction projects are suitable applications.
