Molded case circuit breakers

Noark Ex9M series molded-case circuit-breakers feature high performance level and smaller size, while being easy to install and able to provide improved safety guarantees for the operator.
By Noark Electric February 15, 2017

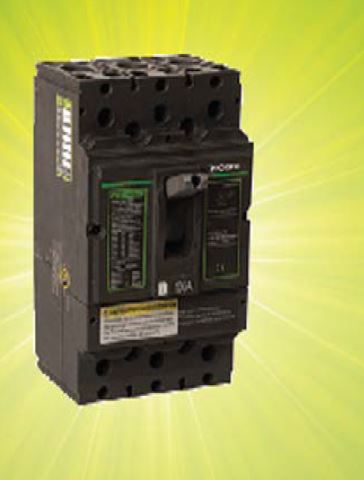

Noark Ex9M series molded-case circuit-breakers feature high performance level and smaller size, while being easy to install and able to provide improved safety guarantees for the operator. Courtesy: NoarkNoark Electric offers a complete range of 2- and 3-pole molded case circuit breakers in four frame sizes: M1 – 100 A, M2 – 225 A, M3 – 400 A, and M4 – 600 A. Each frame size offers a range of interrupting voltage ratings from 240-690 Vac and 250-600 Vdc. The M series conforms to global standards that include UL 489, CSA C22.2 No. 5-02 and IEC 60947-2. The product series feature high-breaking capacity and a new patented arc extinguishing design with installation flexibility: bus bar connection, lug line/load side connection, plug-in, rear connection, and draw-out.

Noark Electric

www.noark-electric.com
